Installing high-speed Ethernet connections in industrial environments often requires specialized tools and careful cable preparation. Banner Engineering has simplified this process with its new Ethernet CAT 6A X-Code field wireable connectors, available in male and female 8-pin versions. The connectors use insulation-displacement contact, or IDC, technology. As the connector is assembled, the contacts automatically pierce through the insulation to create a secure electrical connection. This eliminates the need for additional tools and helps reduce wiring errors, allowing installers to quickly create reliable terminations in the field.

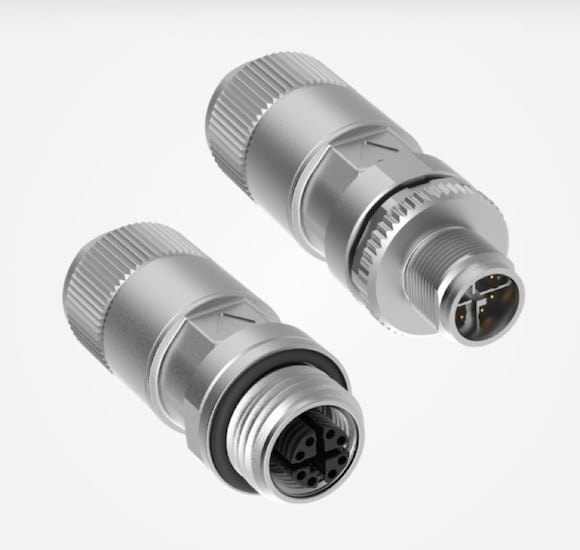

A detailed view of the part numbers “BFW-M12XF8-9X” and “BFW-M12XM8-9X”. Image used courtesy of Banner
High-Speed, High-Reliability Performance
Both connectors are fully shielded to support Ethernet Category 6A data rates, allowing them to handle 10-gigabit transmission speeds. The contacts are gold-plated to preserve signal integrity and extend durability through over a hundred mating cycles. Electrical performance is rated for 50 volts AC or 60 volts DC at 0.5 amps, with an operating temperature rating from –40 °C to +85 °C. These specifications make the connectors suitable for demanding environments with common temperature swings, vibration, and electrical noise.
Rugged Construction for Demanding Environments
The housings are made from nickel-plated brass or die-cast zinc alloys and paired with zinc alloy die-cast coupling nuts. This robust construction, combined with an IP67 environmental rating, protects the connectors against dust ingress and temporary immersion in water. The female version, sold as model BFW-M12XF8-9X (Part Number 818000), uses brass contacts in a polyamide body, while the male version, BFW-M12XM8-9X (Part Number 818001), uses bronze contacts in a polyamide body. Both designs feature gold plating on the contacts to ensure conductivity and resist corrosion over time.
In addition to their rugged build, the connectors handle a variety of cable sizes. They work with 22 to 27 AWG wire and accept cable diameters from 5.5 to 9 millimeters. The IDC termination system ensures that each conductor is consistently engaged while clamping the shielding securely. This flexibility allows installers to use the connectors with different cable types without sacrificing performance or protection.

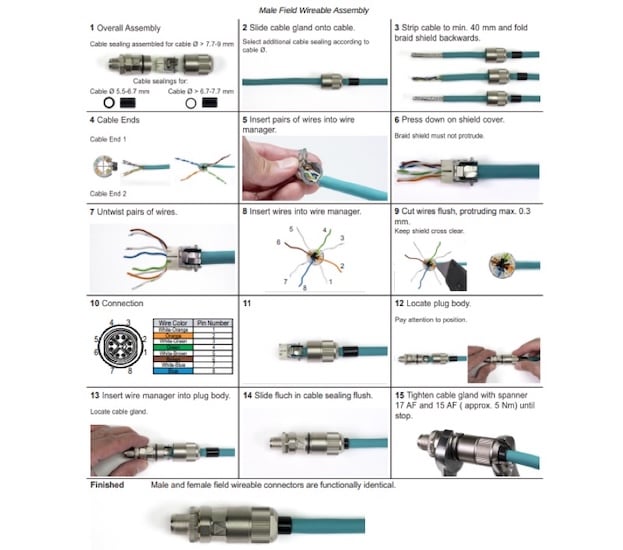

Assembly instructions to clarify the ease of use. Image used courtesy of Banner
Application Range
The combination of Category 6A data performance, durable construction, and easy field assembly makes these connectors well-suited for high-speed networking in industrial automation, transportation, and other harsh-environment applications. They allow plants and facilities to upgrade to 10-gigabit Ethernet without needing specialized toolkits, and they provide the environmental sealing and mechanical strength needed to ensure long-term reliability in the field.
By pairing tool-free IDC connections with CAT 6A transmission rates and IP67 durability, Banner’s new M12 X-Code field wireable connectors give installers a faster and more dependable way to deploy high-speed Ethernet in demanding industrial environments.
